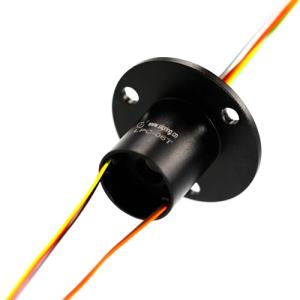

Robotic 6 Circuits Capsule Electrical Slip Ring With Gold To Gold Contact

Name: Robotic 6 Circuits Capsule Electrical Slip Ring With Gold To Gold Contact
Brand: JINPAT
Price: 1 USD

Brand Name : JINPAT

Model Number : LPC-06T

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 50K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Number of Circuits : 6 circuits

Hole Diameter : 1.5~7.0mm

Capsule Length : 31 mm

Lead Size : 28# silver plated copper

Voltage : 2 amps ,240 VAC / DC per circuit.

Applications : urgent illume equipment

Characteristic : capsule slip ring with through hole

Contact Now

Capsule Electrical Slip Ring,with Gold to Gold Contact Long Life Time 6 Circuits,Customized slip ring solution

Description

The capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Using a 90-degree V-groove ring design for each ring provides smoother running, lower torque low contact wear rates than competitive slip ring. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

The LPC-06T slip ring capsule precision module provides long-time maintenance-free operation (no cleaning or lubrication required ) Compact design allows tremendous flexibility in dealing with system size restrictions. And signal and power can be transmitted simultaneously.

Electronic & Electric			Mechanical
Circuits	Total	6 CKT	Working Speed	0~300rpm
	Detail	6x2A	Inner Diameter	∅6.4
Rating Voltage		0~240V AC/DC	Contact Material	Gold to Gold
Dielectric Strength		≥500VAC@50Hz(P) ≥100VAC@50Hz(S)	Housing Material	Aluminum Alloy
Insulation Resistance		≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)	Lead Wire Length	Stator:250±5mm Rotor:250±5mm
Environment			Remarks
Working Temperature		-20°C~+60°C	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP40	Note: "P" stands for power, "S" stands for signal.

Outline Drawing

Robotic 6 Circuits Capsule Electrical Slip Ring With Gold To Gold Contact

Product display

Application Picture

Robotic 6 Circuits Capsule Electrical Slip Ring With Gold To Gold Contact
