JINPAT has been devoted to providing high-quality solutions and units for various intelligent automation fields. The LPT000-073-6402-FO01-E3 is an economical through-hole slip ring for a variety of signals and current mixed transmission. New innovative contact materials ensure long service life and extremely low-maintenance operation. Besides, the surfaces have been specially lubricated, thus allowing less friction and easy cleaning. It can be applied to various fields such as motion table equipment.
Features and Advantags
- 64 circuits *2A, 1 circuit *Gigabit Ethernet, 1 circuit* Optical
- Be able to transmit power, Gigabit Ethernet, USB2.0 and common signals at one time
- No surge kind of interference or data package loss
- Optional rotating speed and wire length
- Technical support
Fiber Optic Parameters of Slip Ring
- Optical fiber type: single mode
- Working wavelength (nm): 1310-1650nm
- Insertion loss: within 2 dB
- Insertion loss WOW: within 0.5Db
- Return loss (dB): beyond 45dB
- Connector type: SC
| Electrical & Electronics | Mechanical |
| Circuits | 64 circuits*2A ; 1 circuit*E3 ; 1 circuit*Optical | Rotating Speed | 0~300rpm |
| Rating Voltage | 150 V | Contact Material | Gold To Gold |
| Dielectric Strength | 1000VAC@50Hz | Housing Material | Aluminum Alloy |
| Insulation Resistance | 1000MΩ@500VDC | Wire Length |
Stator: 1000mm
Rotor: 1000mm |
| Dynamic Resistance Fluctuation Value | 35MΩ |
| Lead Wire Size | AWG24 # Single Core Shielded Wire
AWG24 # Two Core Twisted Shielded Wire Cate5E | / |
| Environmental | Others |
| Temperature | -20°C~+60°C | Life span | Customizable |
| Humidity | ≤60%RH | Note: "P" stands for power, "S" stands for signal |
| Protection grade | IP44 |

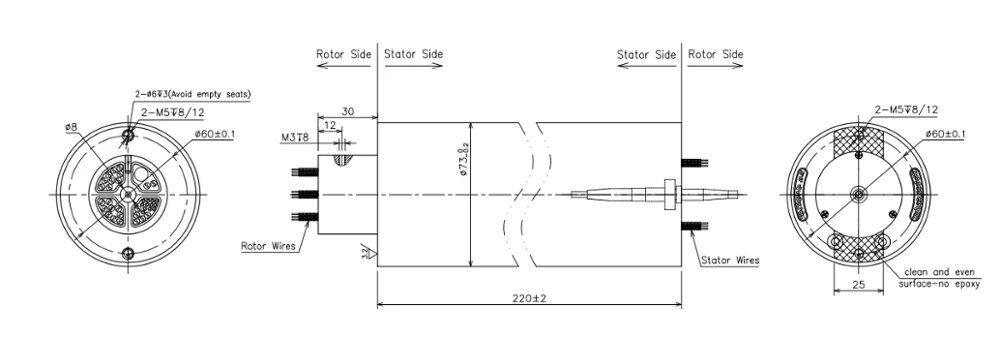

Product outline drawing

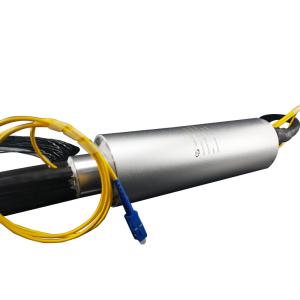

Product Image
