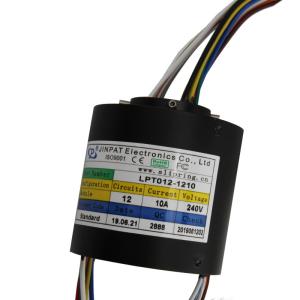

Through Hole Slip Ring 12 Circuit 10A Working Humidity 60% RH

Name: Through Hole Slip Ring 12 Circuit 10A Working Humidity 60 RH
Brand: JINPAT
Price: 1 USD

China Through Hole Slip Ring 12 Circuit 10A Working Humidity 60% RH factory

Brand Name : JINPAT

Model Number : LPT012-1210

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 100K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Electrical Noise : ≤70mΩ

Working Temperature : -20~+60℃

Working Speed : 0~300 RPM

Contact Now

through-bor slip ring 12 circuit 10A working humidity 60% RH below the hole diameter 12.7mm ,bore slip ring

The LPT012-1210 through bore slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

Specification

Circuits	12
Current Rating	10A
Voltage	240VAC
Dielectric Strength	≥1000V@50Hz between circuits
Insulation	500MΩ@500VDC
Electrical Noise	≤70mΩ
Hole Diameter	12.7mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Outline Drawing

Through Hole Slip Ring 12 Circuit 10A Working Humidity 60% RH

Product Display

Through Hole Slip Ring 12 Circuit 10A Working Humidity 60% RH
