Multiple Channel 5A Ethernet Slip Rings Swivel Connector

Name: Multiple Channel 5A Ethernet Slip Rings Swivel Connector
Brand: JINAPT
Price: 1 USD

China Multiple Channel 5A Ethernet Slip Rings Swivel Connector factory

Brand Name : JINAPT

Model Number : LPT060-1205

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 100K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Current Rating : 5A

Number of Circuits : 12

Working Speed : 0-300rpm

Name : Ethernet Slip Rings

Working Temperature : -20℃~ +60℃

Working Humidity : 60%RH or higher

Voltage Rating : 380VAC/DC or higher

Electrical Noise : 30mΩ Min

Contact Now

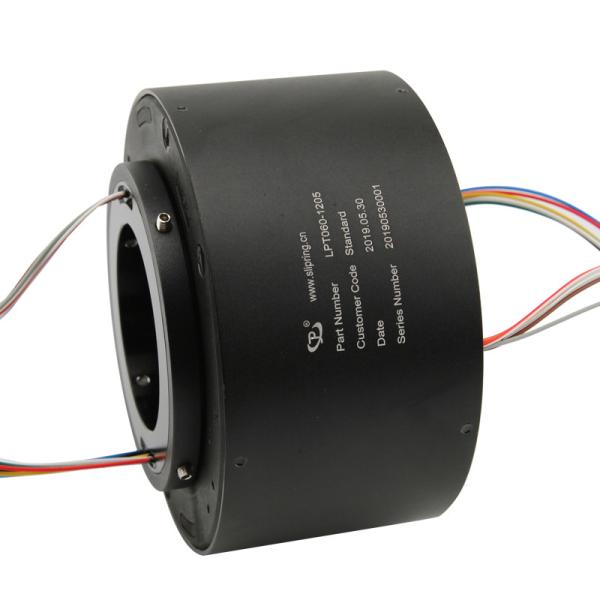

12 Circuits Models 60 mm Through-bore Slip Ring With Compact OD Precious Metal Contacts

60mm through-bore slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutator. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.

The LPT060-1205 features 12 circuits each 5A and uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.

Specification
Circuits	12 circuits
Operating Speed	0-300rpm
Working Temperature	-20℃~ +60℃
Working Humidity	60%RH or higher
Electrical:
Voltage Rating	380VAC/DC or higher
Current Rating	5A per circuit
Dielectric Strength	≥800V@50Hz between each circuit
Insulation Resistance	50MΩ@ 500VDC
Electrical Noise	30mΩ Min
Mechanical:
Contact Material	Precious metal
Lead Wire Length	Standard 300mm (11.811inch)
Housing Material	Aluminum alloy
Torque	≤9.25 g·m (for reference )
Protection	IP44 or higher

Product outline drawing

Multiple Channel 5A Ethernet Slip Rings Swivel Connector

Product Image
