240VAC Industrial Slip Ring 12 Circuit 5A

Name: 240VAC Industrial Slip Ring 12 Circuit 5A
Brand: JINPAT
Price: 1 USD

China 240VAC Industrial Slip Ring 12 Circuit 5A factory

Brand Name : JINPAT

Model Number : LPT038-1205

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 100K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Operating Voltage : 240VAC

Working speed : 0~300rpm

Ring current : 15 circuit 5A

Circuits : 12

Working Temperature : -20~+60℃

Humidity : ≤60%RH

Protection Grade : IP54

Contact Now

The LPT038-1205 through bore slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

The part is LPT038 series slip ring that has a hole of φ38.1mm. It cn transmit 5A current in 6 circuits. Adopting advanced fiber brush technology, the part has a reliable performance with stable conatct and good conductivity.

Specification

Circuits	12
Current Rating	5A
Voltage	240 VAC/DC
Dielectric Strength	≥1000V@50Hz between circuits
Insulation	≥500MΩ@500VDC
Hole Diameter	38.1 mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

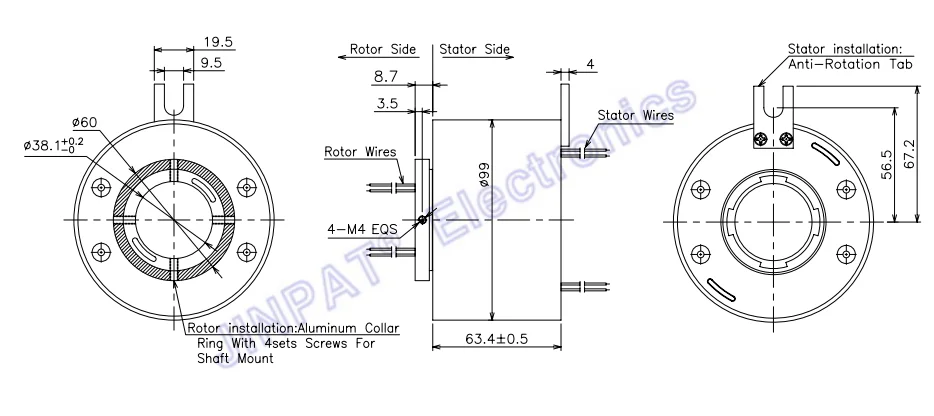

Outline Dimension

240VAC Industrial Slip Ring 12 Circuit 5A

Product Display

240VAC Industrial Slip Ring 12 Circuit 5A
