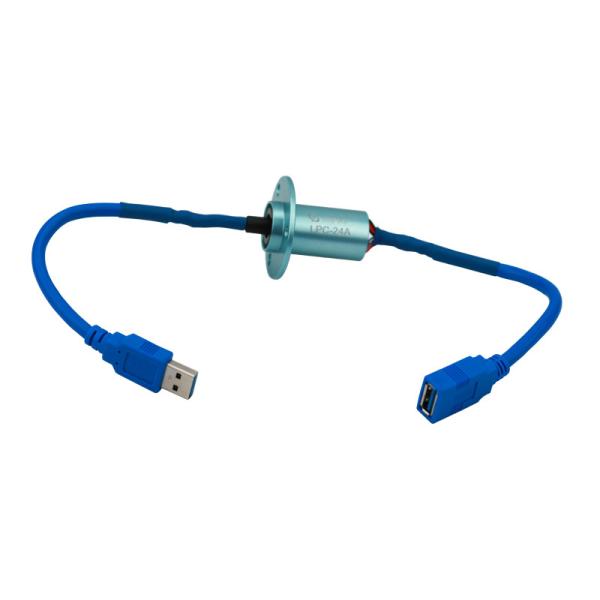

Signal Slip Rings USB3.0 Transmission Professional slipring producer

  • 1
  • 2

Brand Name : JINPAT

Model Number : LPC-24A-U3

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 pieces /Week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Model : USB slip rings

Signal : USB3.0

Voltage : 0~48VAC/DC

Housing Material : Aluminum Alloy

Working Speed : 0~300rpm

Contact Now

Mini USB Slip Ring with Low Electrical Noise and Aluminium Alloy USB3.0 Signal Transmission

USB Slip Rings-3.0

USB was designed to standardize the connection of peripherals to personal computers. It has largely replaced interfaces such as serial ports and parallel ports, and has become commonplace on a wide range of communication devices like PC and portable devices. USB also gradually finds its way to machine vision, data collection, photographic equipment, digital television and recreational machine, etc.

JINPAT USB slip rings are specially designed for USB signal transmission. JINPAT USB slip ring features sufficient signal channels and stable signal transmission. This series includes slip rings with USB 2.0 connector and with USB 3.0 connector. JINPAT USB slip ring is an optimal solution for transmitting large volume of data at high speed between electrical components.

JINPAT USB Slip Rings Advantages:
High transmission, USB 3.0 theoretical transmission rate up 5.0Gbps, measured transmission rate＞2.0Gbps.
Electrical transmission and electro-optical transmission optional
Able to integrate many signal channels. Max channel capacity: 2 USB3.0 channels and 12 USB2.0 channels.
Exquisite contact materials ensure low electrical noise and super long service life.
Various kinds of connector to choose from.

Electronic & Electruc Mechanical
Circuits Total 11 CKT Working Speed 0~300rpm
Detail 1xUSB 3.0 Contact Material Gold to Gold
Rating Voltage 0~48VAC/DC Housing Material Aluminum Alloy
Dielectric Strength ≥100VAC@50Hz Lead Wire Length

Stator: 250士10mm

Rotor: 250士10mm
Insulation Resistance ≥10MΩ@100VDC

Dynamic Resistance

Fluctuation Balue

 ≤35mΩ
35mEnvironment Remarks
Working Temperature -20°C~+60° Application /
Working Humidity ≤60%RH Other /
IP IP40

Note:"P" stands dor power, "S" stands for signal

USB Slip Rings-3.0 -Outline Drawing

Signal Slip Rings USB3.0 Transmission Professional slipring producer

Application Picture

Signal Slip Rings USB3.0 Transmission Professional slipring producer
