IP65 Variable Propeller Signal Slip Ring Power Supply Control

Name: IP65 Variable Propeller Signal Slip Ring Power Supply Control
Brand: JINPAT
Price: 1 USD

China IP65 Variable Propeller Signal Slip Ring Power Supply Control factory

Brand Name : JINPAT

Model Number : LPW-0560-1410-08S

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 pieces /week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Circuits : 5 circuits

Operating Speed : 0~25RPM

Protection : IP65

Fetures : provide power supply for pitch system

Most arresting feature : Have thermostat adjustable heater

High light : Speed measurement device

Contact Now

IP65 Variable Propeller Signal Slip Ring with Power Supply Control for Wind Turbine
Description

JINPAT has developed a com-prehensile standard programmed that is able to offer optimum solutions. Slip ring bodies can be supplied either as open slip ring bodies to be built per customers’ requirements or in a housing of impact-resistant plastic or sheet metal.

A slip ring is mounted on the hub with the same speed on the shaft. It prevents rotation through the suspension support. The slip ring is connected to the shaft of the gearbox and its interface should match the shape and dimensions of the gearbox shaft.

Product specification

Circuits	5 circuits(power)+22 circuits(signal)	Current	5 circuits@ 10A, 4~30 circuits
Voltage	400VAC(power),24VDC(signal)	Operating Speed	0~25RPM
Working Temperature	–40°C~+80°C	scope of application	1.25~2.5MW
Housing material	Aluminum alloy blasting	Torque	1N·M
Working life	About 220 million	Contact material	Copper Graphite, Precious Metals
Dynamic resistance fluctuation	≤10mΩ(at 50rpm)	Protection	IP65
Pressure strength	≥500V@50Hz(power) ≥300VAC@50Hz(signal)	Lead Size	AWG6#,17# Wire,CAN bus
Insulation Resistance	500MΩ@500VDC(power) 100MΩ@100VDC(signal)	Working Humidity	0~100%RH

Benefits of product

Provide power supply for pitch system, transmit control signal and communication signal
The slip ring is mounted on the hub with the same speed on the shaft. It prevents rotation through the suspension support. The slip ring is connected to the shaft of the gearbox and its interface should match the shape and dimensions of the gearbox shaft.
Provide wheel lighting power supply loop and have thermostat adjustable heater
Own speed measurement device to strengthen the fan monitoring and fan safety protection
Wire outlet way: Rotor side connection—head to head, stator side connection—head to head

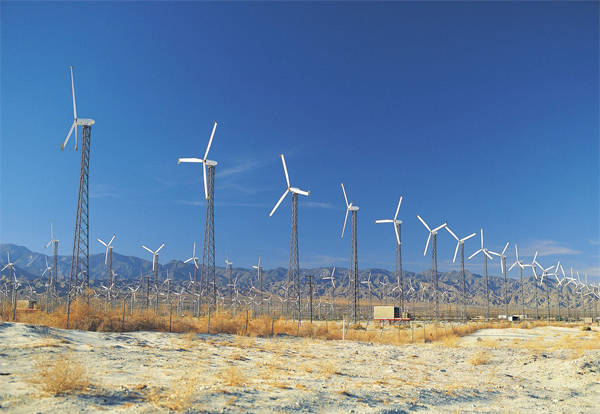

Product application

IP65 Variable Propeller Signal Slip Ring Power Supply Control
