Brand Name : JINPAT
Model Number : LPS-08
Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : TT/CC/Paypal
Supply Ability : 500 pieces /Week
Delivery Time : 2 weeks ARO
Packaging Details : Standard/On Request
Circuits : 8 circuits
Operating Speed : 0-100 rpm
Working Temperature : -20℃ to +60℃
Working Humidity : 60%RH or higher
Contact Material : Gold to Gold
Lead Wire Length : Standard 250 mm (9.843inch)
Dielectric Strength : ≥500 VAC @50Hz, between each circuit
Application : Electrical Test Equipment
8 Circuits Electric Separate Slip Ring with 300 rpm Rotating Speed for Electrical Test Equipment
Description
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
The LPS-08 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Specifications | |
Operating Speed | 0-100 rpm |
Number of Circuits | 8 |
Voltage | 240 VAC/DC |
Current Rating | 1-3A |
Temperature Range | -20℃ to +60℃ |
Working Humidity | 60%RH or higher |
Contact Material | Gold to Gold |
Lead Size | 28 # silver plated copper |
Lead Length | Standard 250 mm (9.843inch) |
Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
Housing Material | Precious metal |
Insulation Resistance | 1000 MΩ @ 500 VDC |
Electrical Noise | 1 mΩMin |
Outline Drawing

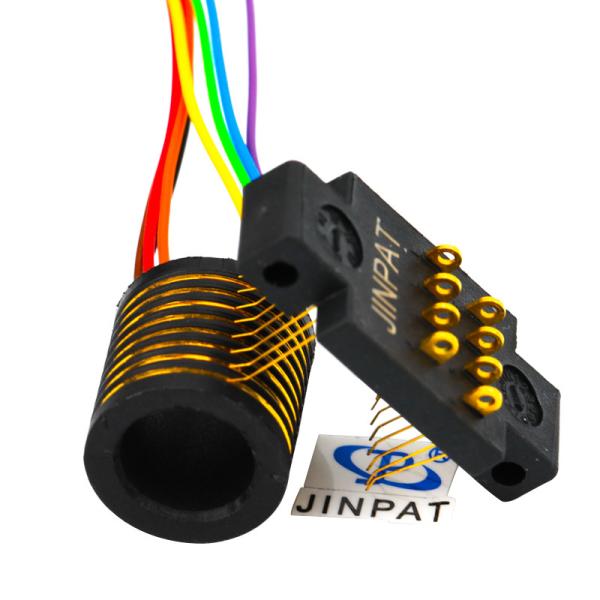

Product Display
Application Picture
![]() |
